# AWS S3
Connect your S3 to see your S3 datasets and files within the Catalog.
## Supported Capabilities
{% tabs %}
{% tab title="Supported Capabilities" %}
**General**
* **Metadata** — metadata extraction and display of asset information (tables, columns, schemas). Types collected: Schema, Table, Column
* **Preview** — sample data preview
{% endtab %}
{% tab title="Not Supported" %}
**General**
* Profiling
* Data Quality
* Configurable Collection
* External Table
* View Table
* Stored Procedure
{% endtab %}
{% endtabs %}
To connect your AWS S3 to Decube, we will need the following information.
Choose authentication method:
a. [**AWS Identity**](#a.-aws-roles):
* Select AWS Identity
* Customer AWS Role ARN
* Region
* Path Specs
* Data source name

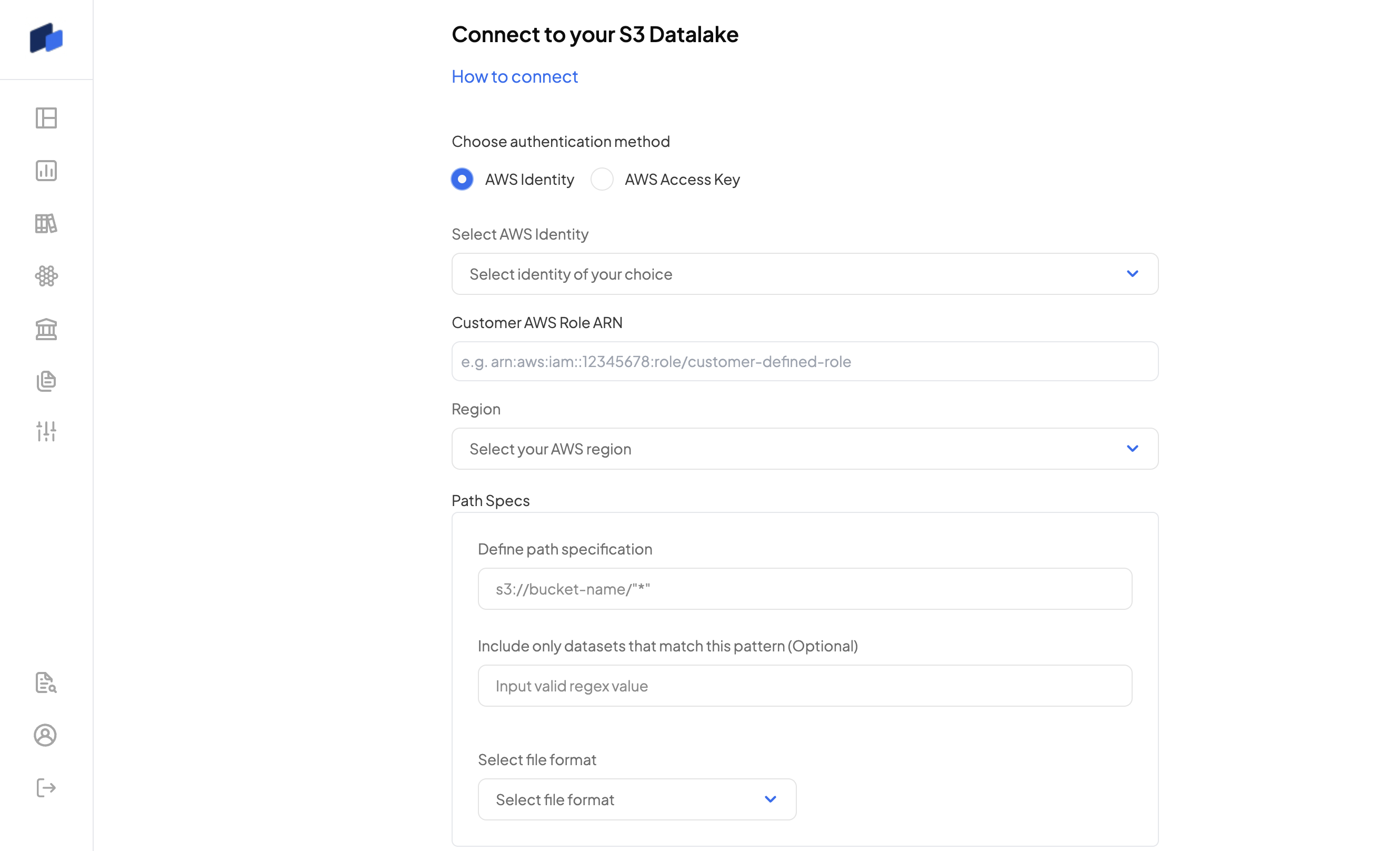

S3 Datalake using AWS Identity

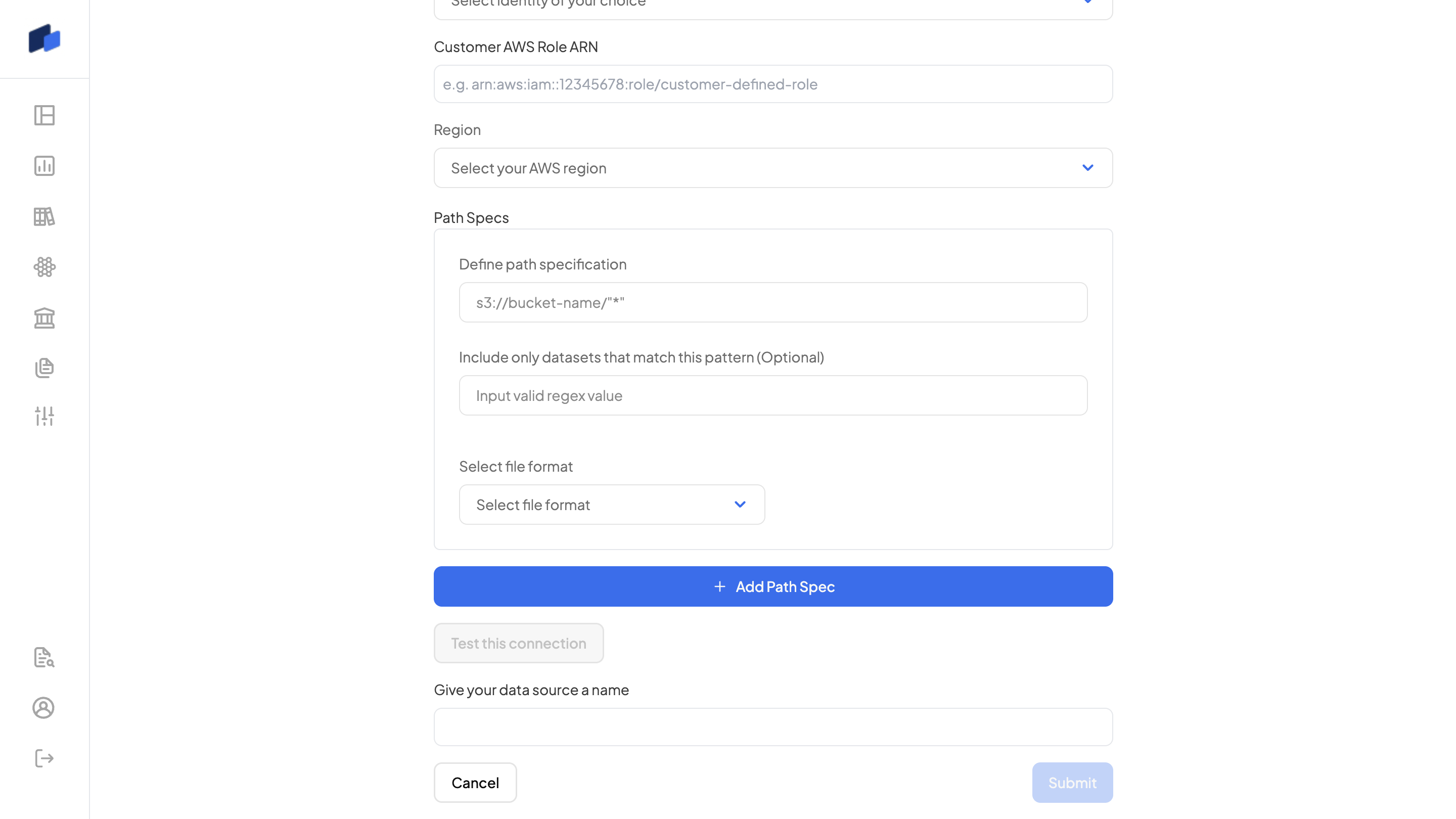

Continuation of S3 Data Lake setup using AWS Identity
b. **AWS** **Access** **Key**:
* Access Key ID
* Secret Access Key
* Region
* Path Specs
* Data source name

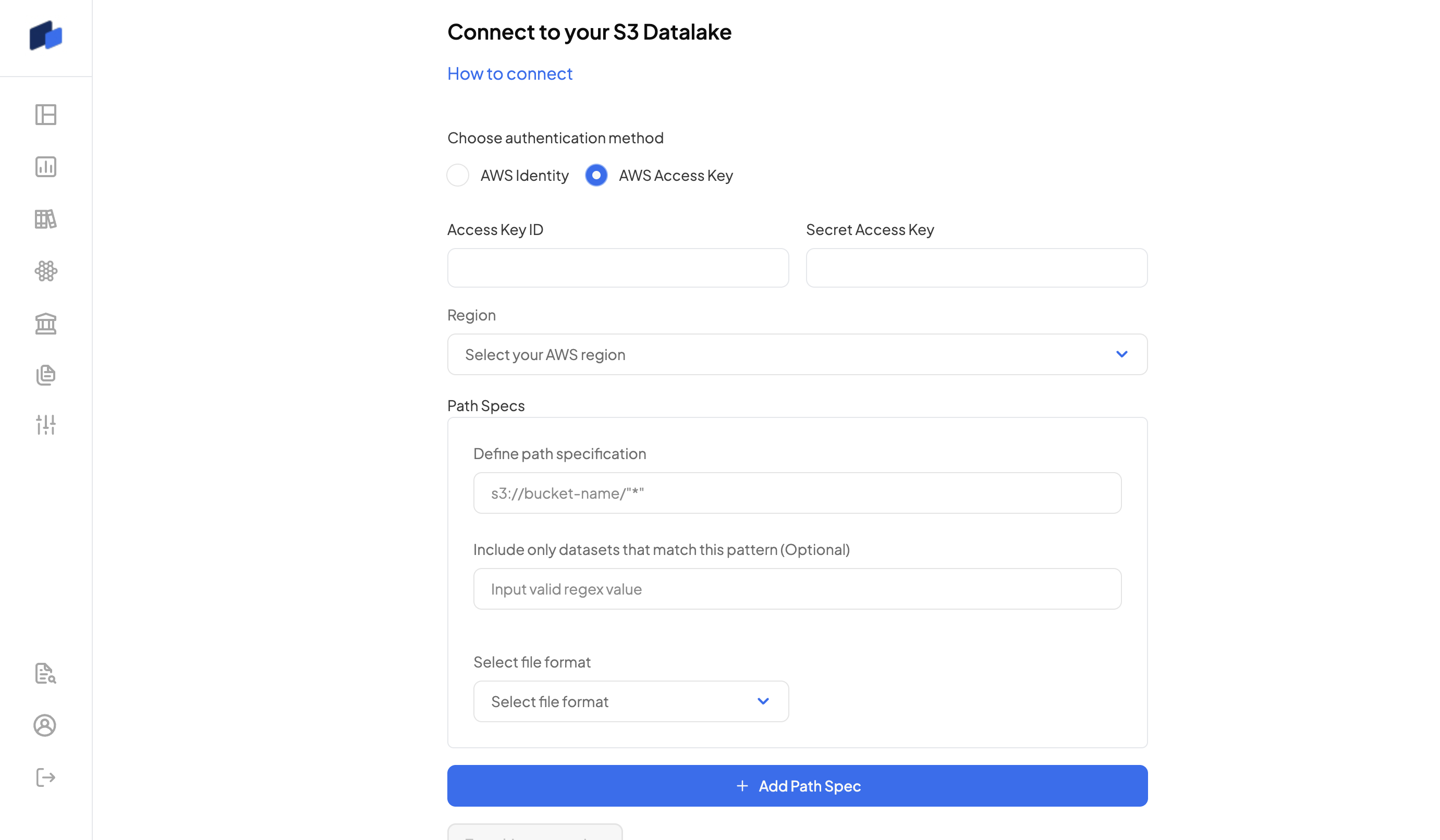

S3 Datalake using AWS Access Key
## Connection Options:
#### a. AWS Roles
{% hint style="info" %}
This section will create a **Customer AWS Role** within your AWS account that has the right set of permission to access your data sources.
{% endhint %}

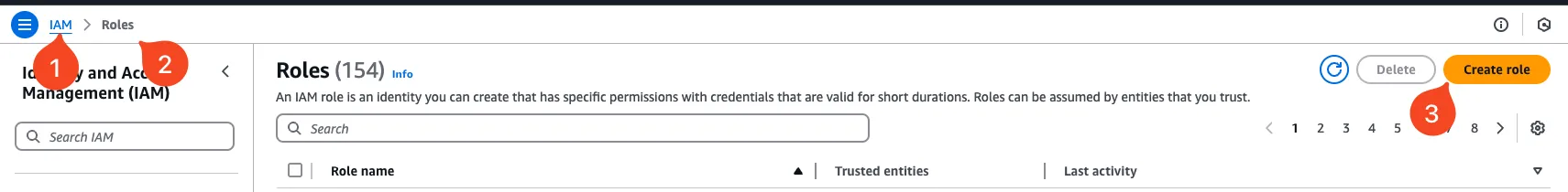

* Step 1: Go to your AWS Account > IAM Module > Roles
* Step 2: Click on **Create role**
* Step 3: Choose **Custom trust policy**
* Step 4: Specify the following as the trust policy, replacing `DECUBE-AWS-IDENTITY-ARN` and `EXTERNAL-ID` with values from [AWS Identities](/security-and-connectivity/aws-identities.md#generating-a-decube-aws-identity).
```
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"AWS": ""
},
"Action": "sts:AssumeRole",
"Condition": {
"StringEquals": {
"sts:ExternalId": ""
}
}
}
]
}
```
* Step 5: Click next to proceed to attach policy.
* Step 6: Click on Attach Policies and Create Policy and choose JSON Editor. Input the following policy and press next, input the policy name of your choice and press Create Policy.
```
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "VisualEditor0",
"Effect": "Allow",
"Action": [
"s3:GetObject",
"s3:ListBucket",
"s3:ListAllMyBuckets"
],
"Resource": [
"arn:aws:s3:::{bucket-name}",
"arn:aws:s3:::{bucket-name}/*"
]
}
]
}
```
#### b. AWS IAM User

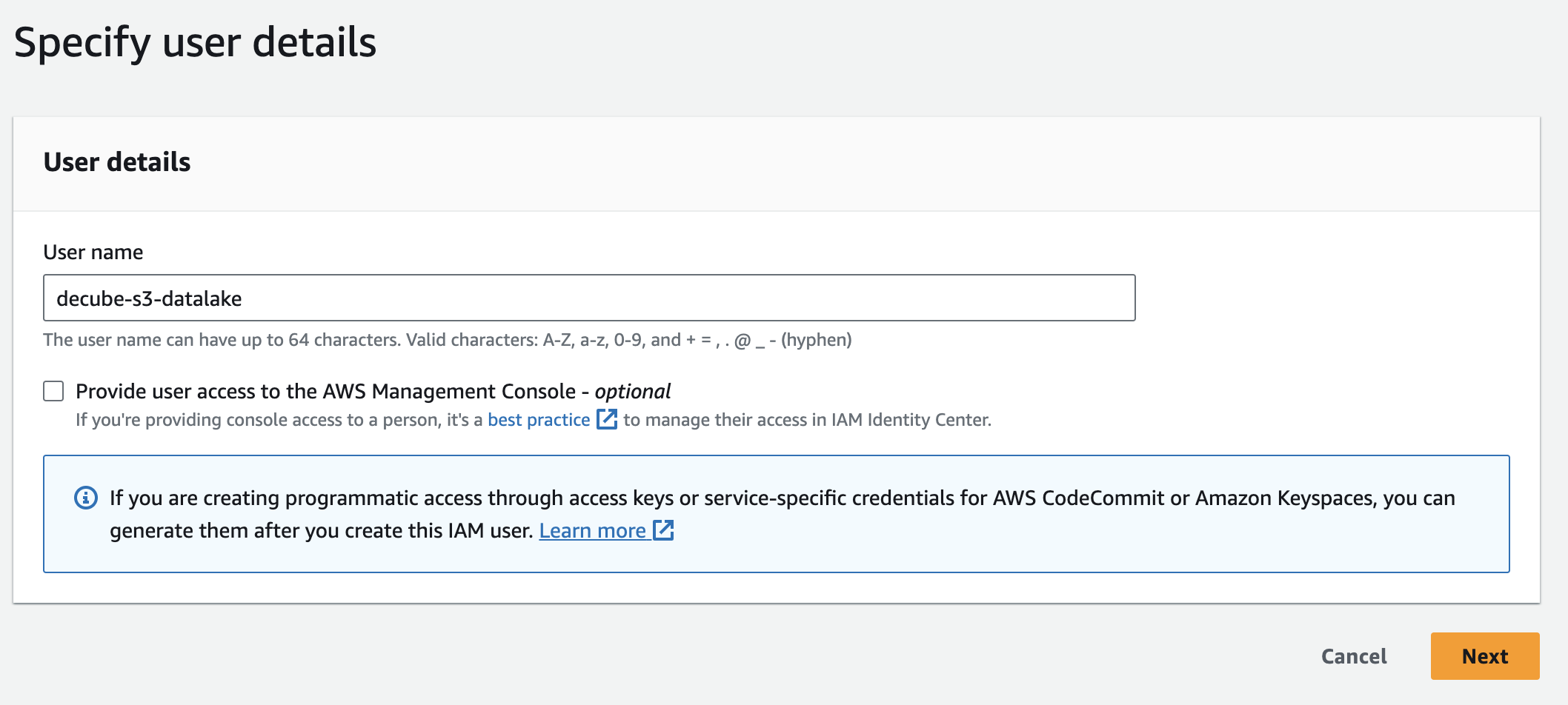

* Step 1: Login to AWS Console and proceed to IAM > User > Create User
* Step 2: Click on Attach Policies and Create Policy and choose JSON Editor input the following policy and press next, input the policy name of your choice and press Create Policy
```jsx
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "VisualEditor0",
"Effect": "Allow",
"Action": [
"s3:GetObject",
"s3:ListBucket",
"s3:ListAllMyBuckets"
],
"Resource": [
"arn:aws:s3:::{bucket-name}",
"arn:aws:s3:::{bucket-name}/*"
]
}
]
}
```

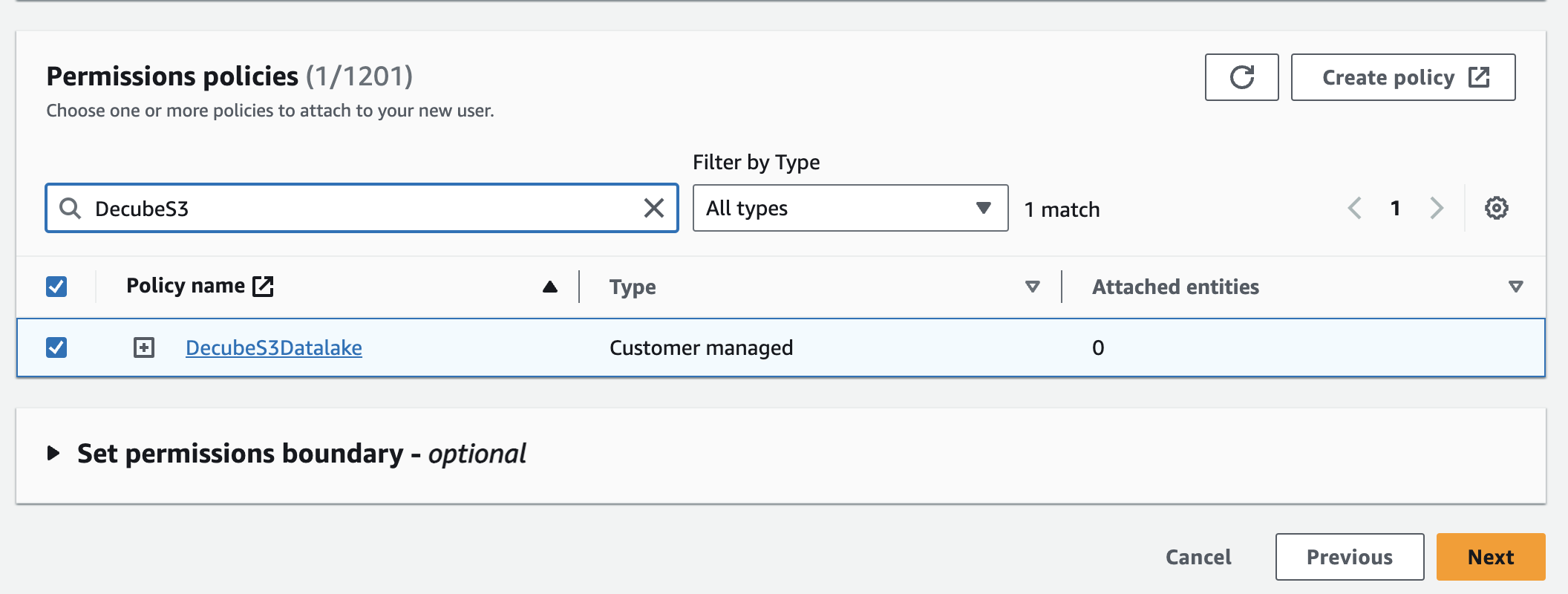

* Step 3: Search for the policy you created just now, select it and press Next.

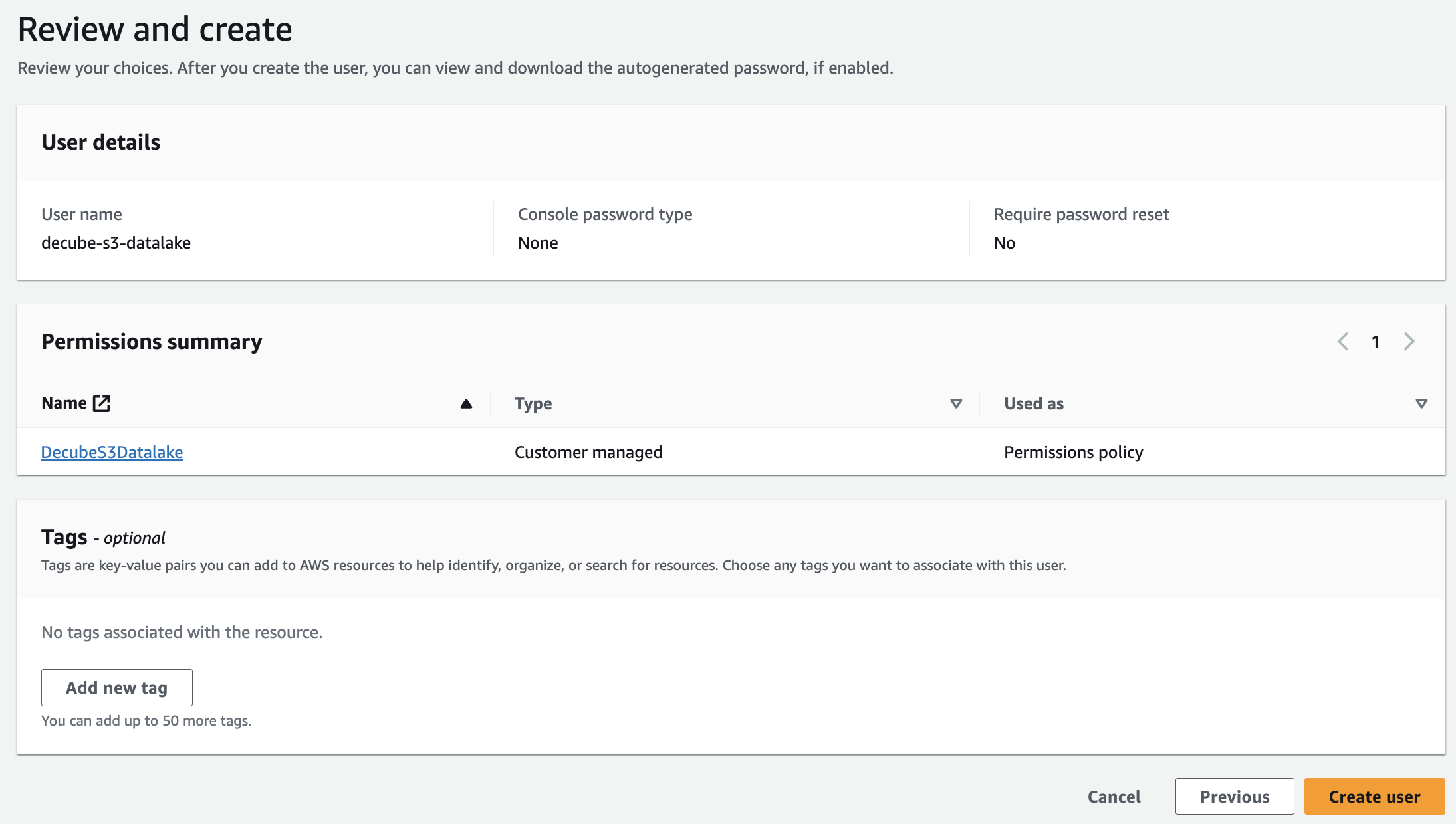

* Step 4: Press **Create user**

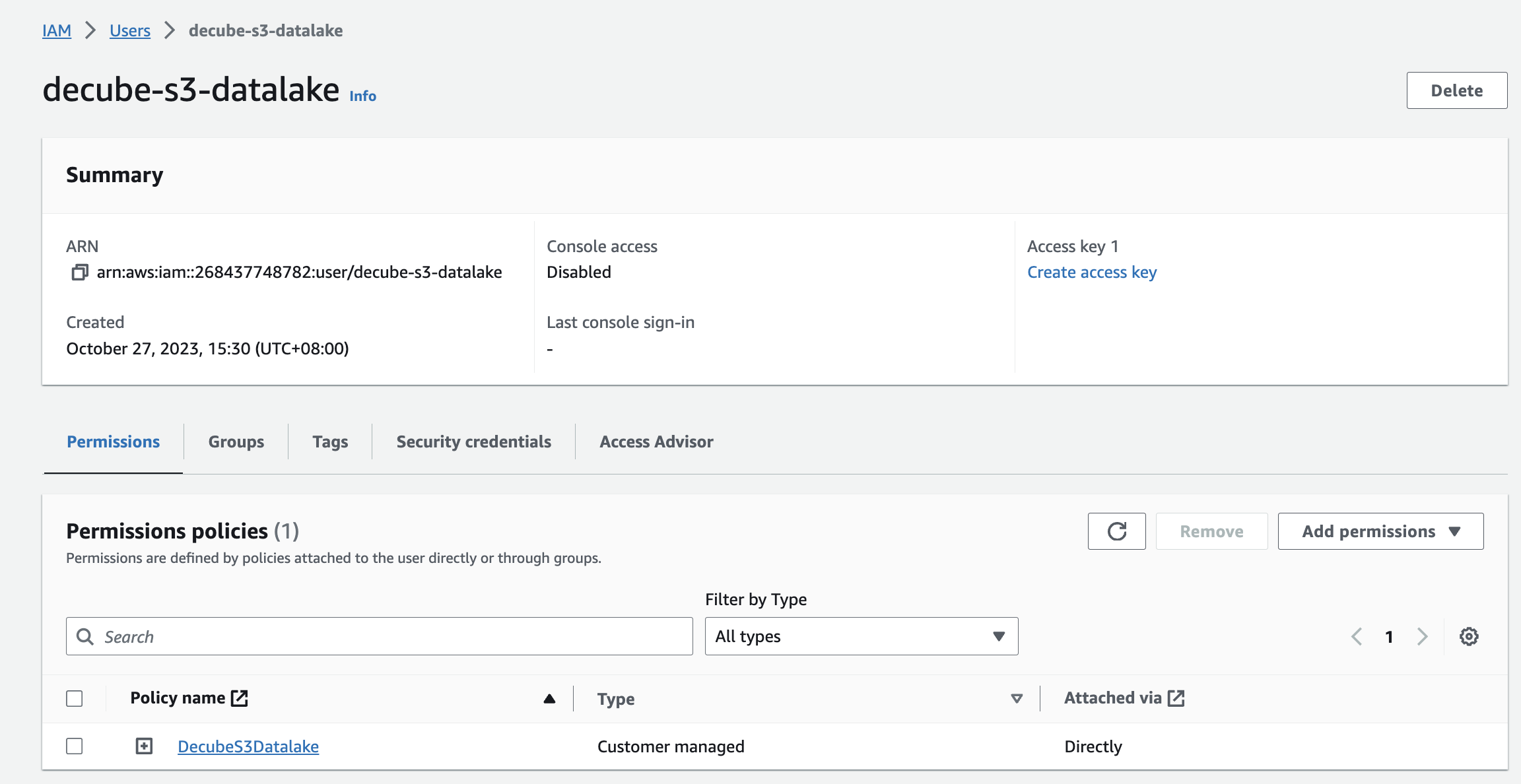

* Step 5: Navigate to the newly created user and click on `Create access key`

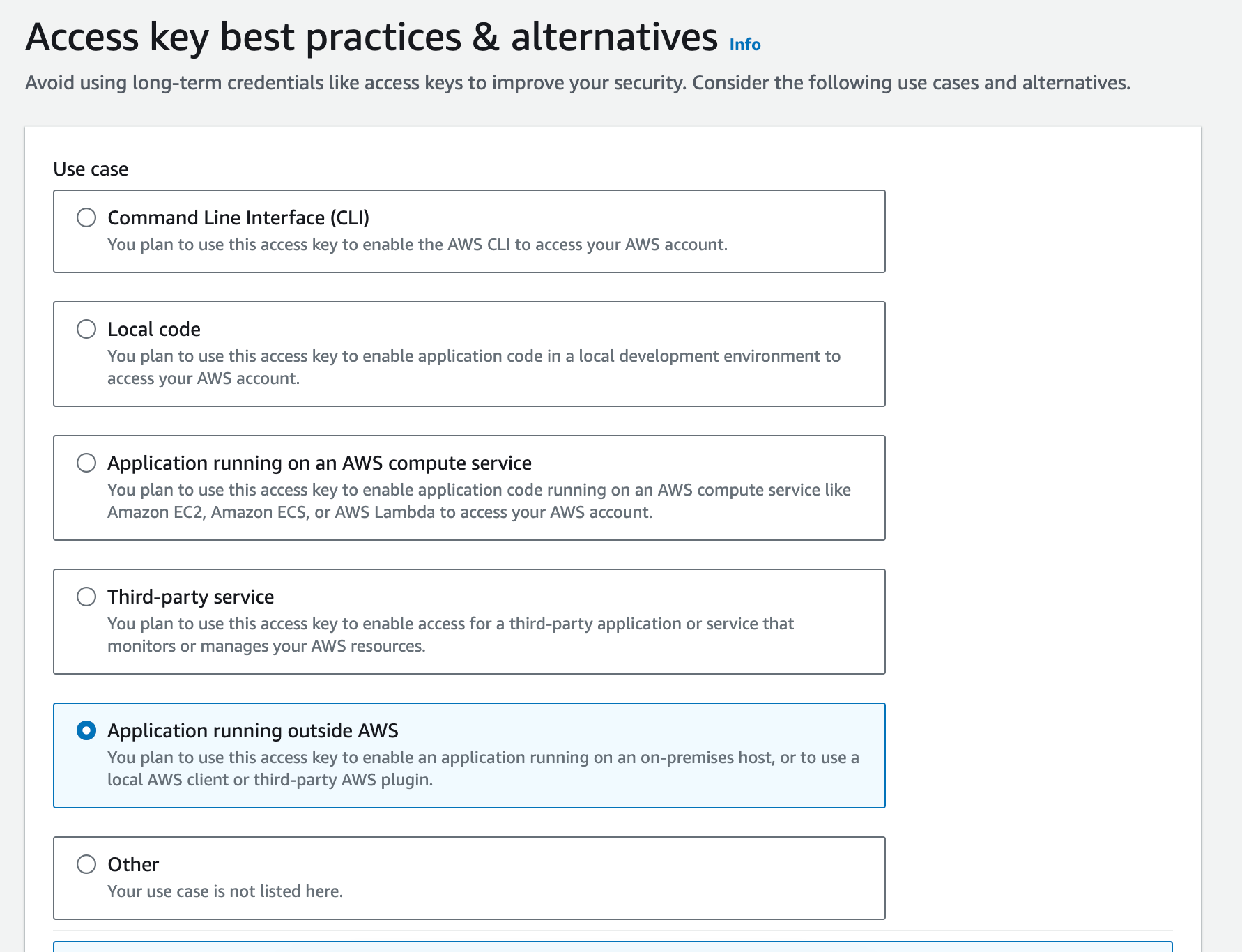

* Step 6: Choose `Application running outside AWS`

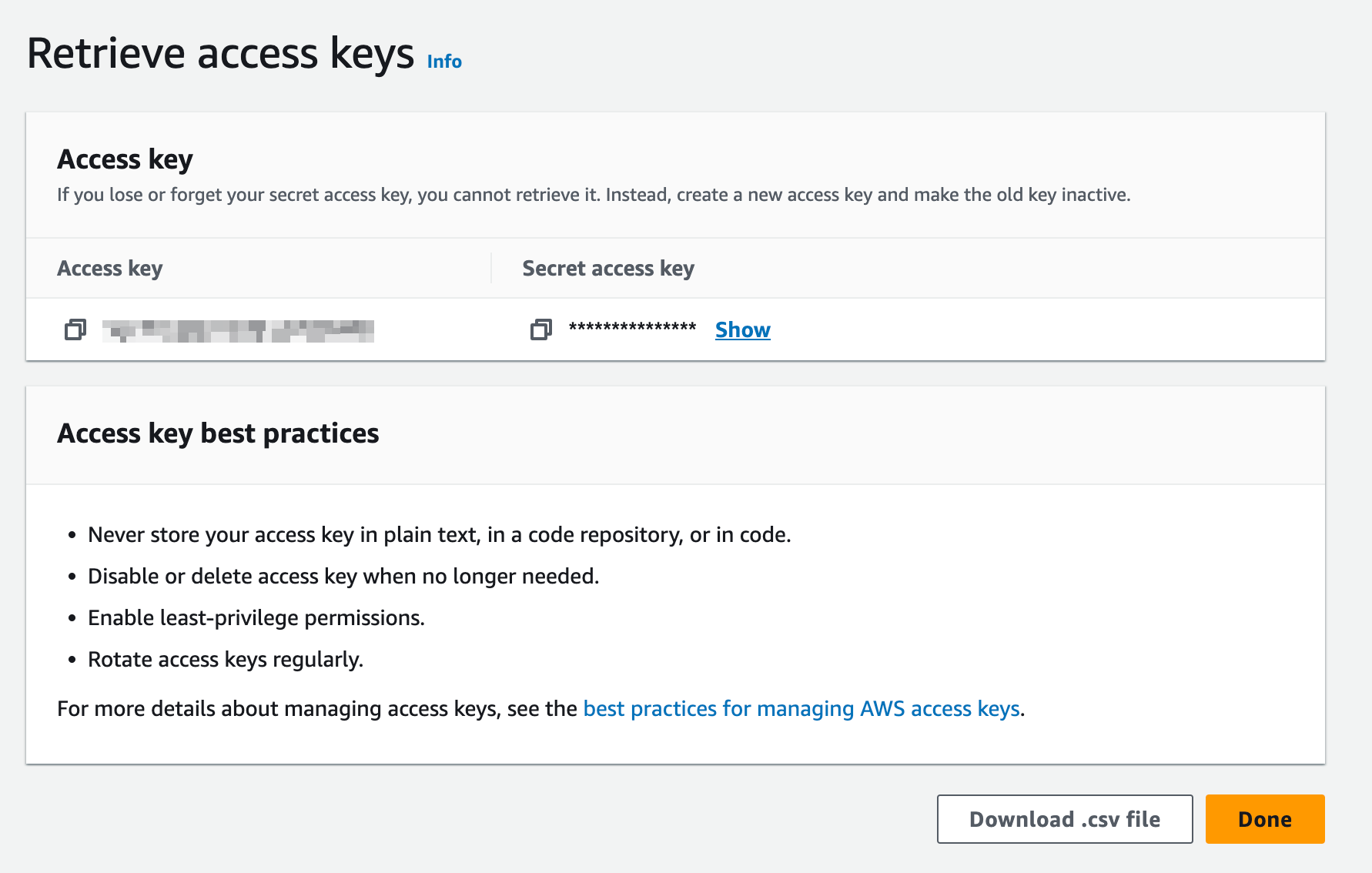

* Step 7: Save the provided access key and secret access key. You will not be able to retrieve these keys again
#### AWS KMS
If the bucket intended to be connected to Decube is encrypted using a customer managed KMS key, you will need to add the AWS IAM user created above to the key policy statement.
1. Login to AWS Console and proceed to AWS KMS > Customer-managed keys.
2. Find the key that was used to encrypt the AWS S3 bucket.
3. On the Key policy tab, click on `Edit`
4. Assuming the user created is `decube-s3-datalake`
a. If there is not an existing policy attached to the key
```bash
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "Allow decube to use key",
"Effect": "Allow",
"Principal": {
"AWS": [
"arn:aws:iam:::user/{decube-s3-datalake}"
]
},
"Action": "kms:Decrypt",
"Resource": "*"
}
]
}
```
b. If there is an existing policy, append this section to the `Statement` array:
```bash
{
"Statement": [
{
"Sid": "Allow decube to use key",
"Effect": "Allow",
"Principal": {
"AWS": [
"arn:aws:iam:::user/{decube-s3-datalake}"
]
},
"Action": "kms:Decrypt",
"Resource": "*"
}
]
}
```
5. `Save Changes`
## Path Specs
Path Specs (`path_specs`) is a list of Path Spec (`path_spec`) objects where each individual `path_spec` represents one or more datasets. Providing a path specification represents the formatted path to the dataset in your S3 bucket which Decube will use to ingest and catalog the data.
The provided path specification MUST end with `*.*` or `*.[ext]` to represent leaf level. (Note that here '\*' is *not* a wildcard symbol). If `*.[ext]` is provided then files with only specified extension type will be scanned. "`.[ext]`" can be any of the supported file types listed below.
Each `path_spec` represents only one file type (e.g., only `*.csv` or only `*.parquet`). To ingest multiple file types, add multiple `path_spec` entries.
**SingleFile pathspec**: PathSpec without `{table}` (targets individual files).**MultiFile pathspec**: PathSpec with `{table}` (targets folders as datasets).
**Include only datasets that match this pattern**: If the path spec specifies a table, and the regex is provided, only datasets that match the regex will be included.
### File Format Settings
* **CSV**
* `delimiter` (default: `,`)
* `escape_char` (default: `\\`)
* `quote_char` (default: `"`)
* `has_headers` (default: true)
* `skip_n_line` (default: 0)
* `file_encoding` (default: UTF-8; supported: ASCII, UTF-8, UTF-16, UTF-32, Big5, GB2312, EUC-TW, HZ-GB-2312, ISO-2022-CN, EUC-JP, SHIFT\_JIS, CP932, ISO-2022-JP, EUC-KR, ISO-2022-KR, Johab, KOI8-R, MacCyrillic, IBM855, IBM866, ISO-8859-5, windows-1251, MacRoman, ISO-8859-7, windows-1253, ISO-8859-8, windows-1255, TIS-620)
* **Parquet**
* No options
* **JSON/JSONL**
* `file_encoding` (default: UTF-8; see above for supported encodings)
* **Delta Table**
* When selecting Format = `Delta Table`, the path spec MUST include the named token `{table}`. The connector expects the `{table}` token in the path spec so it can discover Delta table roots. No per-file options are required.
**Additional points to note**
* Folder names should not contain {, }, \*, / in their names.
* Named variable {folder} is reserved for internal working. please do not use in named variables.
### Example Path Specs
#### Example 1 - Individual file as Dataset (SingleFile pathspec)
Bucket structure:
```
test-bucket
├── employees.csv
├── departments.json
└── food_items.csv
```
Path specs config to ingest `employees.csv` and `food_items.csv` as datasets:
```
path_specs:
- s3://test-bucket/*.csv
```
This will automatically ignore `departments.json` file. To include it, use `*.*` instead of `*.csv`.
**Example 2 - Folder of files as Dataset (without Partitions)**
Bucket structure:
```
test-bucket
└── offers
├── 1.csv
└── 2.csv
```
Path specs config to ingest folder `offers` as dataset:
```
path_specs:
- s3://test-bucket/{table}/*.csv
```
`{table}` represents folder for which dataset will be created.
**Example 3 - Folder of files as Dataset (with Partitions)**
Bucket structure:
```
test-bucket
├── orders
│ └── year=2022
│ └── month=2
│ ├── 1.parquet
│ └── 2.parquet
└── returns
└── year=2021
└── month=2
└── 1.parquet
```
Path specs config to ingest folders `orders` and `returns` as datasets:
```
path_specs:
- s3://test-bucket/{table}/*/*/*.parquet
```
**Example 4 - Advanced - Either Individual file OR Folder of files as Dataset**
Bucket structure:
```
test-bucket
├── customers
│ ├── part1.json
│ ├── part2.json
│ ├── part3.json
│ └── part4.json
├── employees.csv
├── food_items.csv
├── tmp_10101000.csv
└── orders
└── year=2022
└── month=2
├── 1.parquet
├── 2.parquet
└── 3.parquet
```
Path specs config:
```
path_specs:
- path_spec_1: s3://test-bucket/*.csv
- path_spec_2: s3://test-bucket/{table}/*.json
- path_spec_3: s3://test-bucket/{table}/*/*/*.parquet
```
Above config has 3 path\_specs and will ingest following datasets
* `employees.csv` - Single File as Dataset
* `food_items.csv` - Single File as Dataset
* `customers` - Folder as Dataset
* `orders` - Folder as Dataset
**Valid path\_specs.include**
```python
s3://my-bucket/foo/tests/bar.csv # single file table
s3://my-bucket/foo/tests/*.* # mulitple file level tables
s3://my-bucket/foo/tests/{table}/*.parquet #table without partition
s3://my-bucket/foo/tests/{table}/*/*.csv #table where partitions are not specified
s3://my-bucket/foo/tests/{table}/*.* # table where no partitions as well as data type specified
s3://my-bucket/{dept}/tests/{table}/*.parquet # specifying keywords to be used in display namepartition key and value format
```
#### Example 5 - Delta Table (S3)
For Delta Table support, include `{table}` in the path. Example simple path spec for S3:
```
path_specs:
- s3://my-bucket/{table}/
```
The connector will interpret `{table}` as the table root for each Delta table.
#### Supported file types
* CSV (`*.csv`)
* JSON (`*.json`)
* JSONL (`*.jsonl`)
* Parquet (`*.parquet`)
* Delta (`Delta Table`)
### Notes
* Data Quality Monitoring is no longer supported for S3 sources. Only cataloging is available.
* For advanced dataset structures, add multiple `path_spec` entries as needed, each with its own file type and settings.
