Airflow

Adding Airflow to your decube connections helps your team to discover, document and monitor the quality of your pipelines.

Supported Capabilities

Supported Capabilities

General

• Metadata — metadata extraction and display of asset information (tables, columns, schemas). Types collected: Data Job, Data Run, Data Task

Data Quality Monitors

• Job Failure

Not Supported

General

• Profiling

• Preview

• Data Quality

• Configurable Collection

• External Table

• View Table

• Stored Procedure

Data Quality Monitors

• Freshness

• Volume

• Field Health

• Custom SQL

• Schema Drift

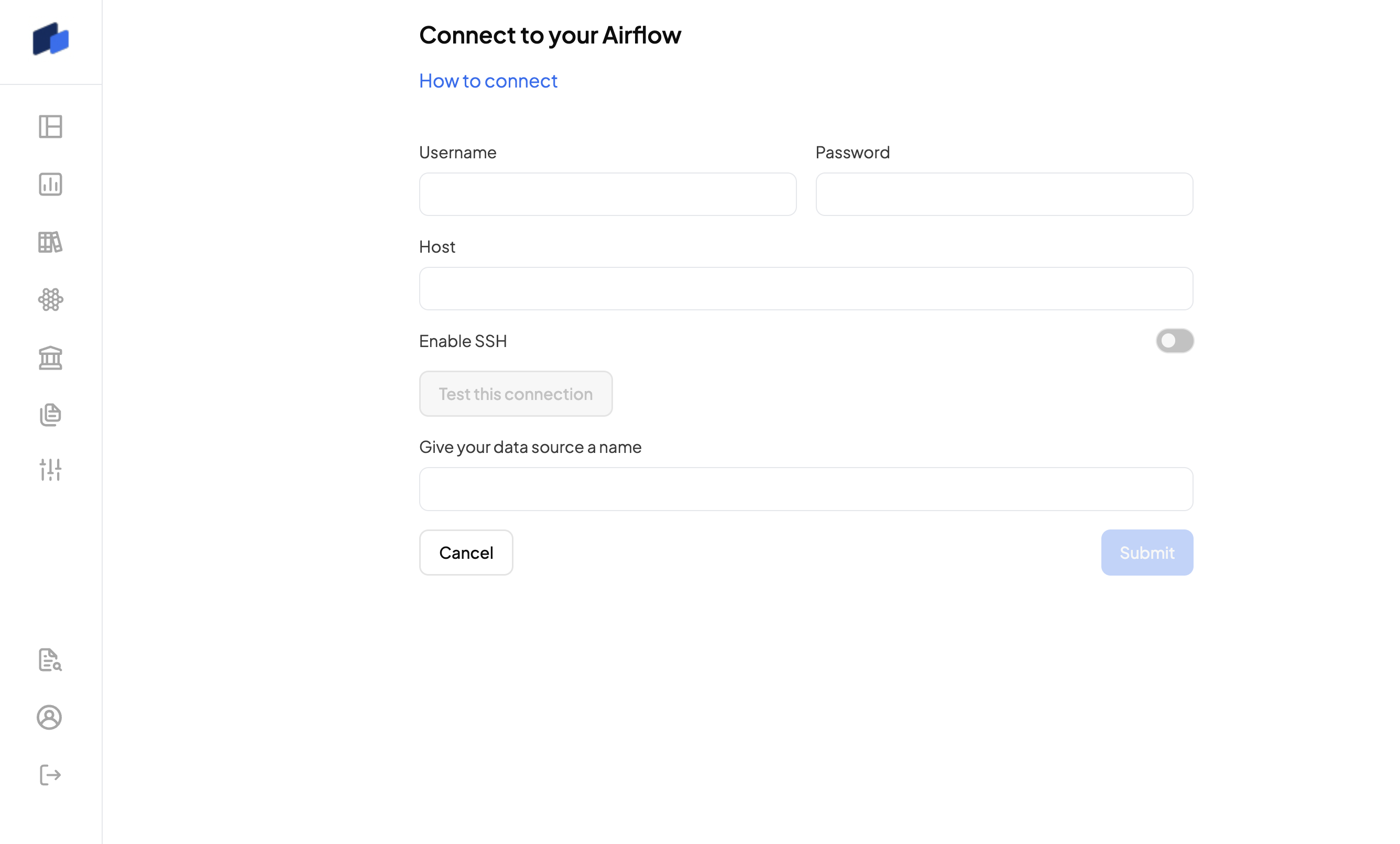

Connection Requirements

• Airflow Username

• Airflow User Password

• Airflow API host address

• Airflow API enabled and set to Basic Auth. See Airflow Documentation for this.

• Airflow Version 2.3.0 and above (Version >= 2.0.0 and < 2.3.0 may not work fully)

Airflow

Creating an Airflow User for Decube

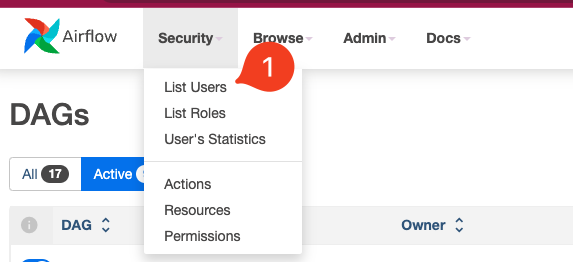

1. Go to Security > List Users

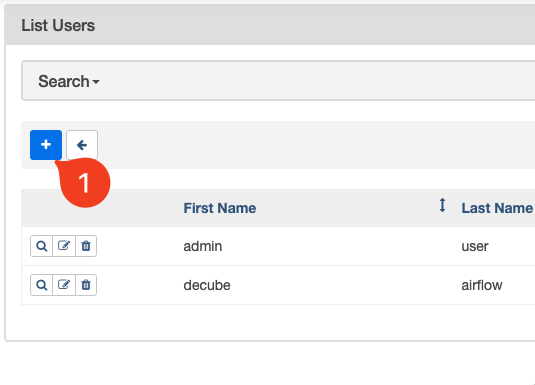

1. Click on "+" to Add User

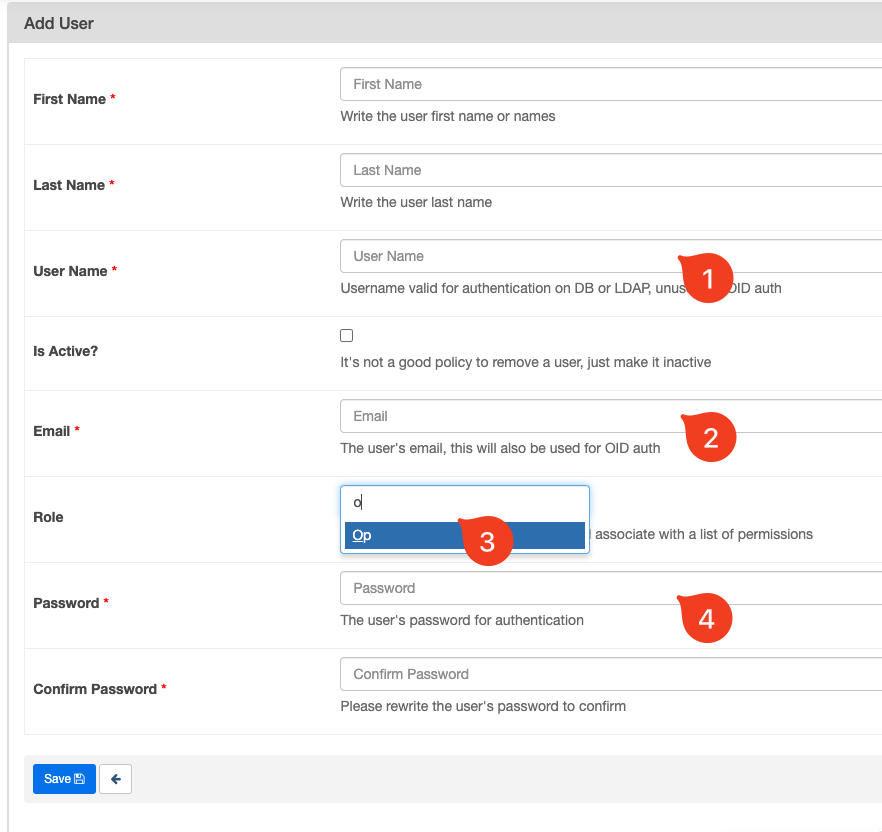

1. Insert information for new decube user

   1. Username - suggested value: decube

   2. Email - [e-mail]

   3. Role - Minimum required Op (which is a default role from Airflow)

   4. Password - Use a strong password

Airflow API is not Publicly Accessible

• For decube to monitor your Airflow service, we will require that the Airflow API be publicly accessible or privately accessible to a SSH bastion host. Instruction on setting up a bastion host can be found here SSH Tunneling
