# PowerBI

Add a PowerBI connection to your decube so that you can discover the lineage of your assets from source to dashboards.

## Supported Capabilities

{% tabs %}
{% tab title="Supported Capabilities" %}
**General**

* **Metadata** — metadata extraction and display of asset information (tables, columns, schemas). Types collected: Schema, Virtual Table, Virtual Column, Chart, Dashboard
* **Configurable Collection** — selective ingestion of schemas/workspaces in Data Source Management
  {% endtab %}

{% tab title="Not Supported" %}
**General**

* Profiling
* Preview
* Data Quality
* External Table
* View Table
* Stored Procedure
  {% endtab %}
  {% endtabs %}

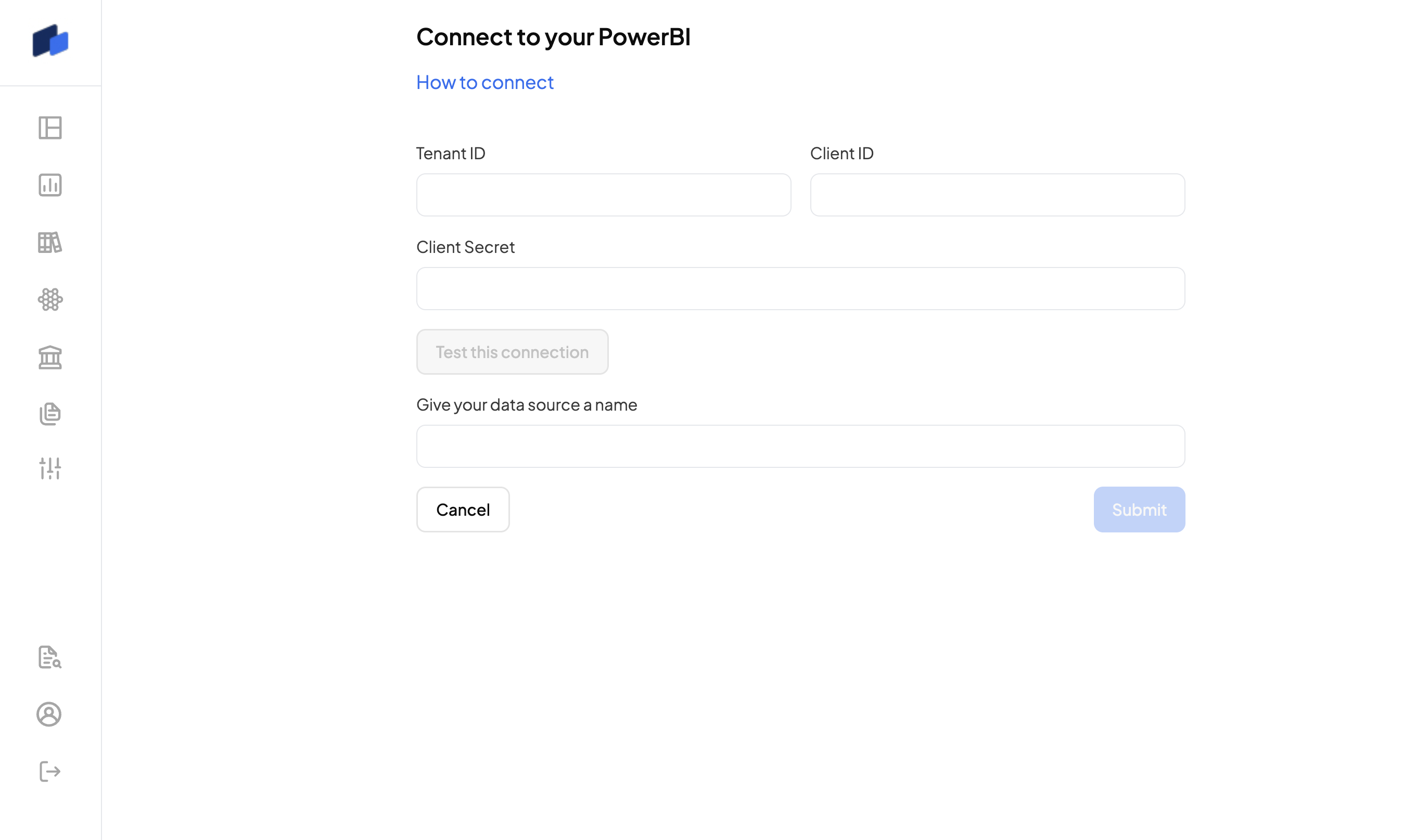

Connecting to PowerBI requires credentials that can be configured and found through this guide. These credentials include:

* `Tenant ID`
* `Client ID`
* `Client Secret`

<figure><img src="https://1779874722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTw0qpCVzfrIXqS4FEg4T%2Fuploads%2Fgit-blob-822d37fe0c49ea358bea58d2e6509e4042a57a1f%2Fimage.png?alt=media" alt=""><figcaption><p>PowerBI</p></figcaption></figure>

To note, for complete Lineage to report sources, with [additional configurations](/transformation-tools/additional-configurations.md) we only support sources from:

* BigQuery
* PostgreSQL
* Microsoft SQL
* Snowflake
* Synapse

{% hint style="warning" %}
**The connector might be rate-limited when it is scanning more than 1000 workspaces.**
{% endhint %}

### Prerequisite

1. Access to Azure Active Directory for service principals.
2. A PowerBI Pro or Premium (Premium per-user or Premium capacity ) workspace.
3. Admin access to PowerBI to change Tenant Settings.

### Creating Service Principals and Security Group

1. Go to Azure Active Directory, under the Manage tab to the left of the screen, look for `App Registrations` and click it.

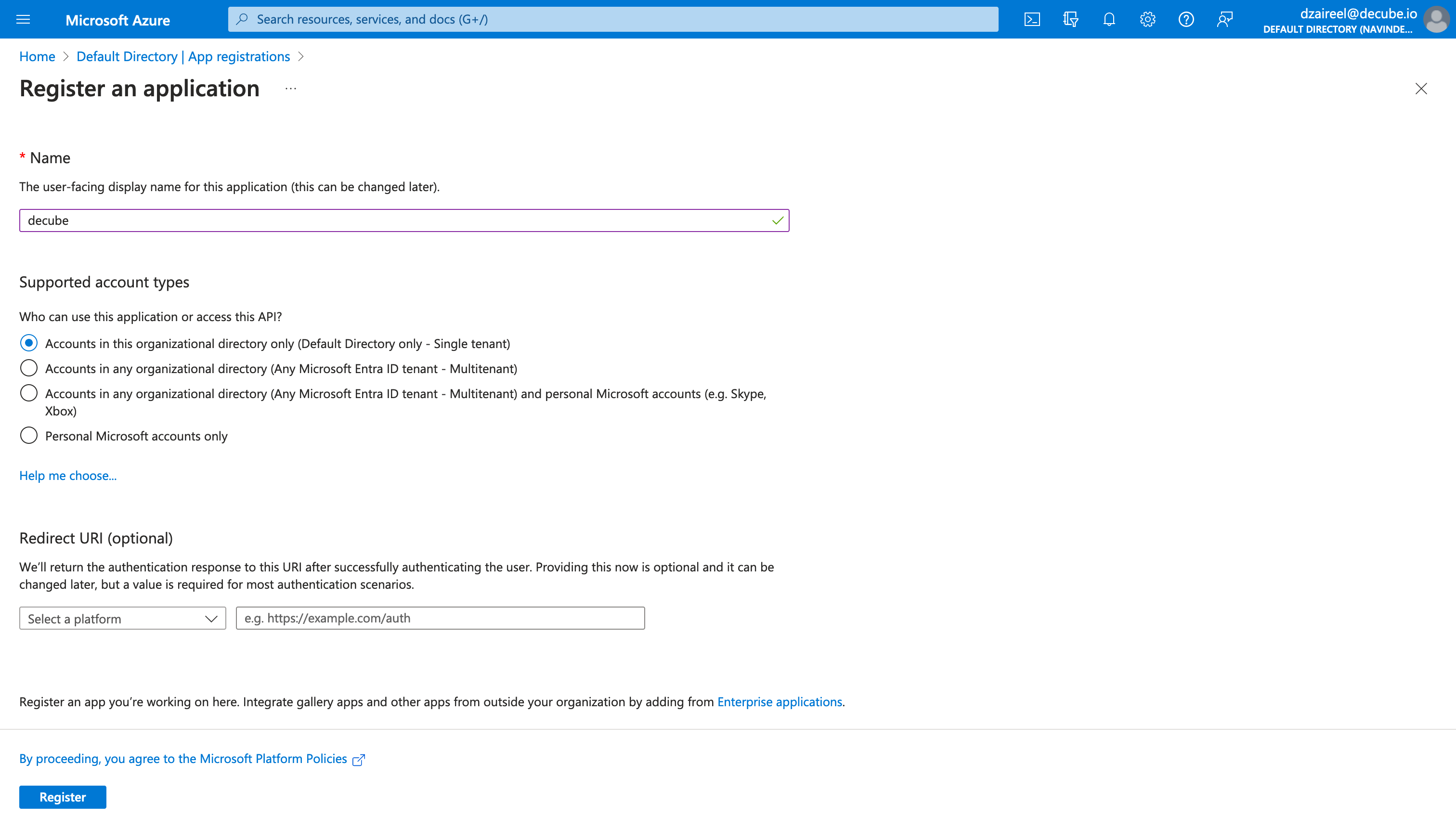

2. Click on `New Registrations` on the top of the tab and you'll be presented with the screen below.

<figure><img src="https://1779874722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTw0qpCVzfrIXqS4FEg4T%2Fuploads%2Fgit-blob-447dff21ef82021075dd118869b8d334bde19992%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

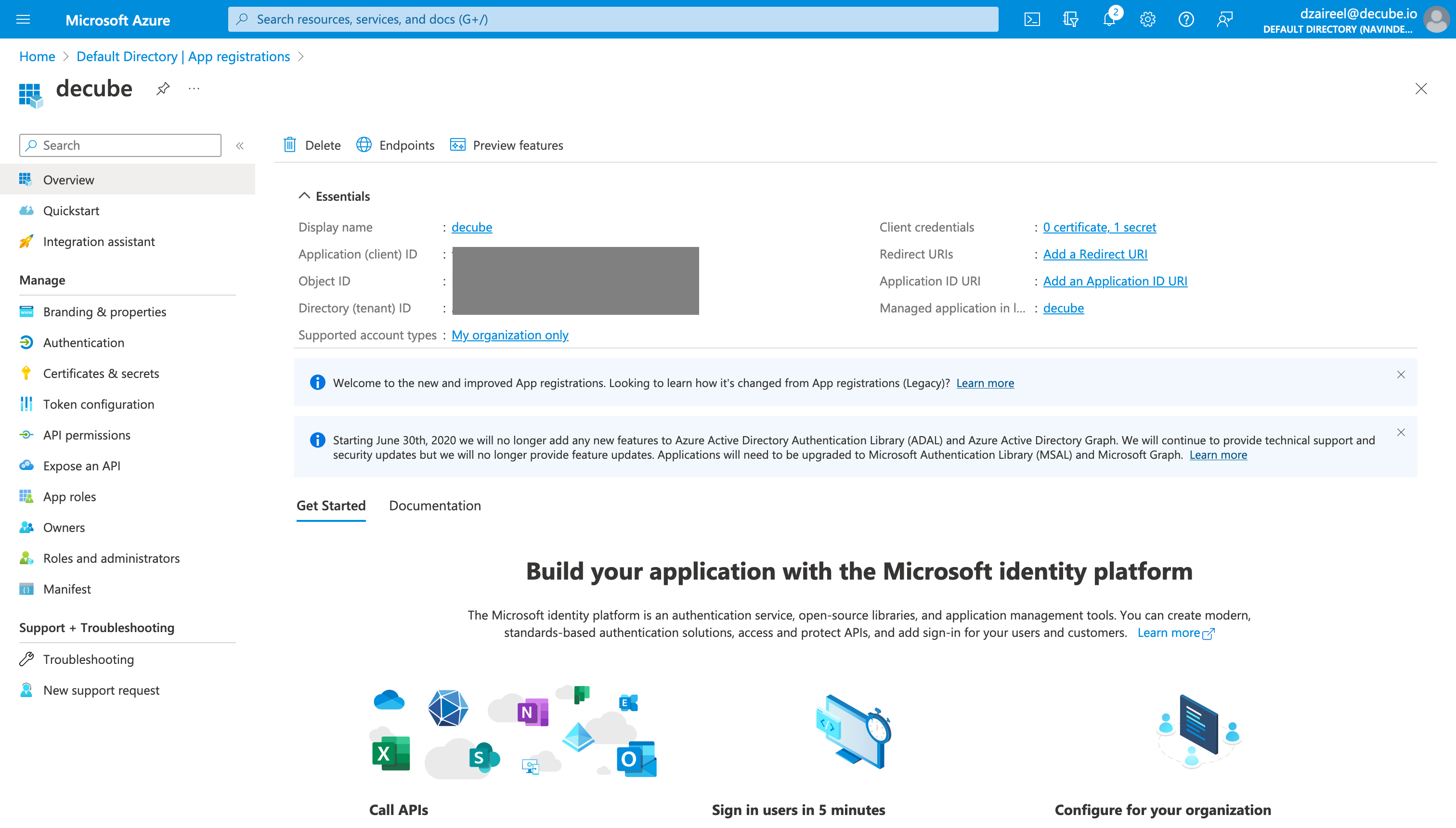

3. We recommend entering `decube` as the Name. Click Register when you are done.

<figure><img src="https://1779874722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTw0qpCVzfrIXqS4FEg4T%2Fuploads%2Fgit-blob-90d094ab37290a8fb2eda669ab9fd6b1cbb55d27%2Fimage.psd.png?alt=media" alt=""><figcaption></figcaption></figure>

4. Click Overview on the left tab and take note of the `Client ID` and `Tenant ID` we would require when setting up decube.

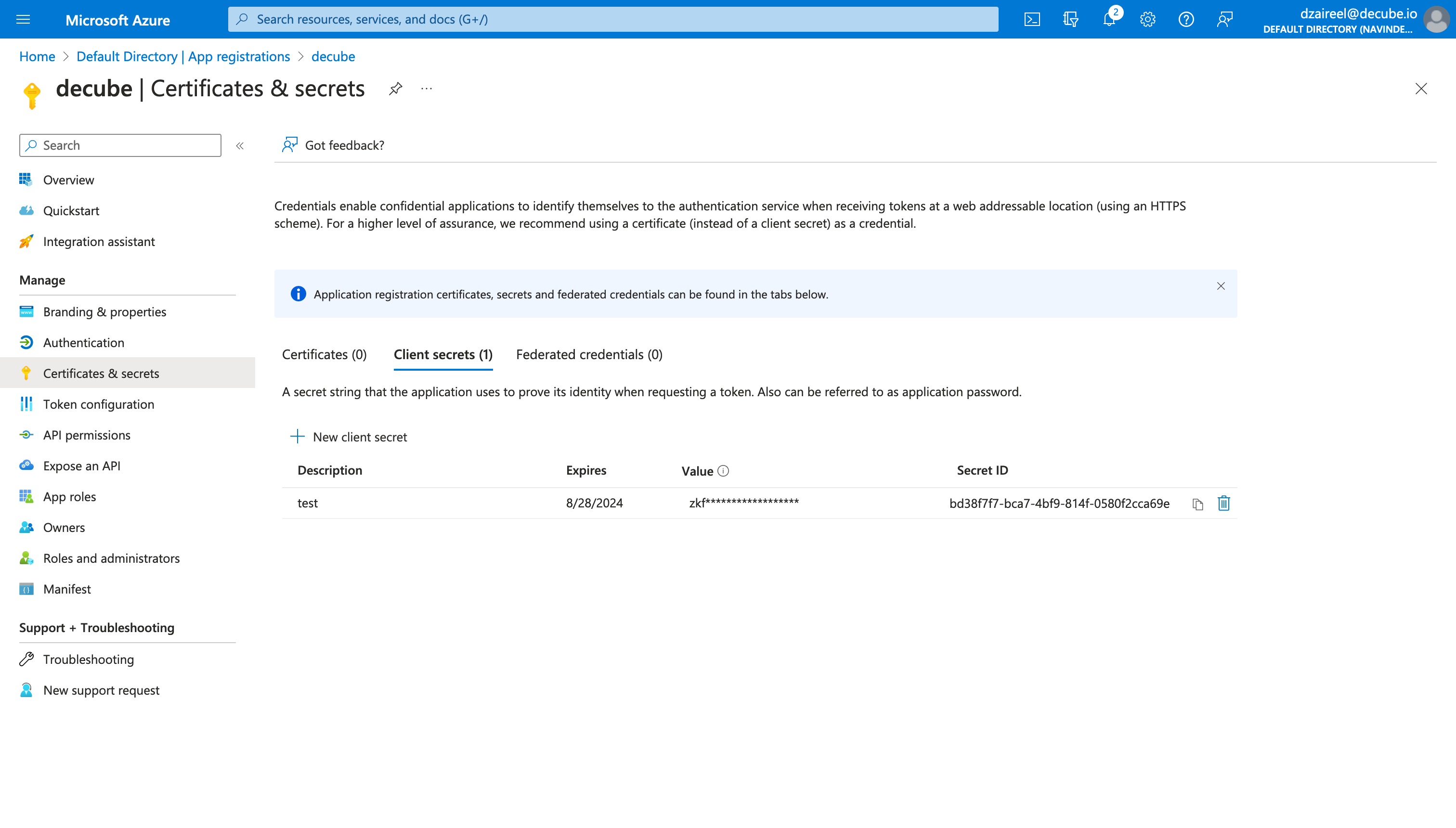

5. Click on `Certificates and Secret`s on the left tab again and click on `New Client Secret` as below. We recommend the description to be `'decube client secret`' and the expiry date to be until the end of your contract with us.

**Make sure to copy the Value of the Client Secret and store it somewhere safe like Azure Key Vault. We will need this value for registration.**

<figure><img src="https://1779874722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTw0qpCVzfrIXqS4FEg4T%2Fuploads%2Fgit-blob-0eeabbcf5d84c09a1cb2dcf1a9632f3fea2973e4%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

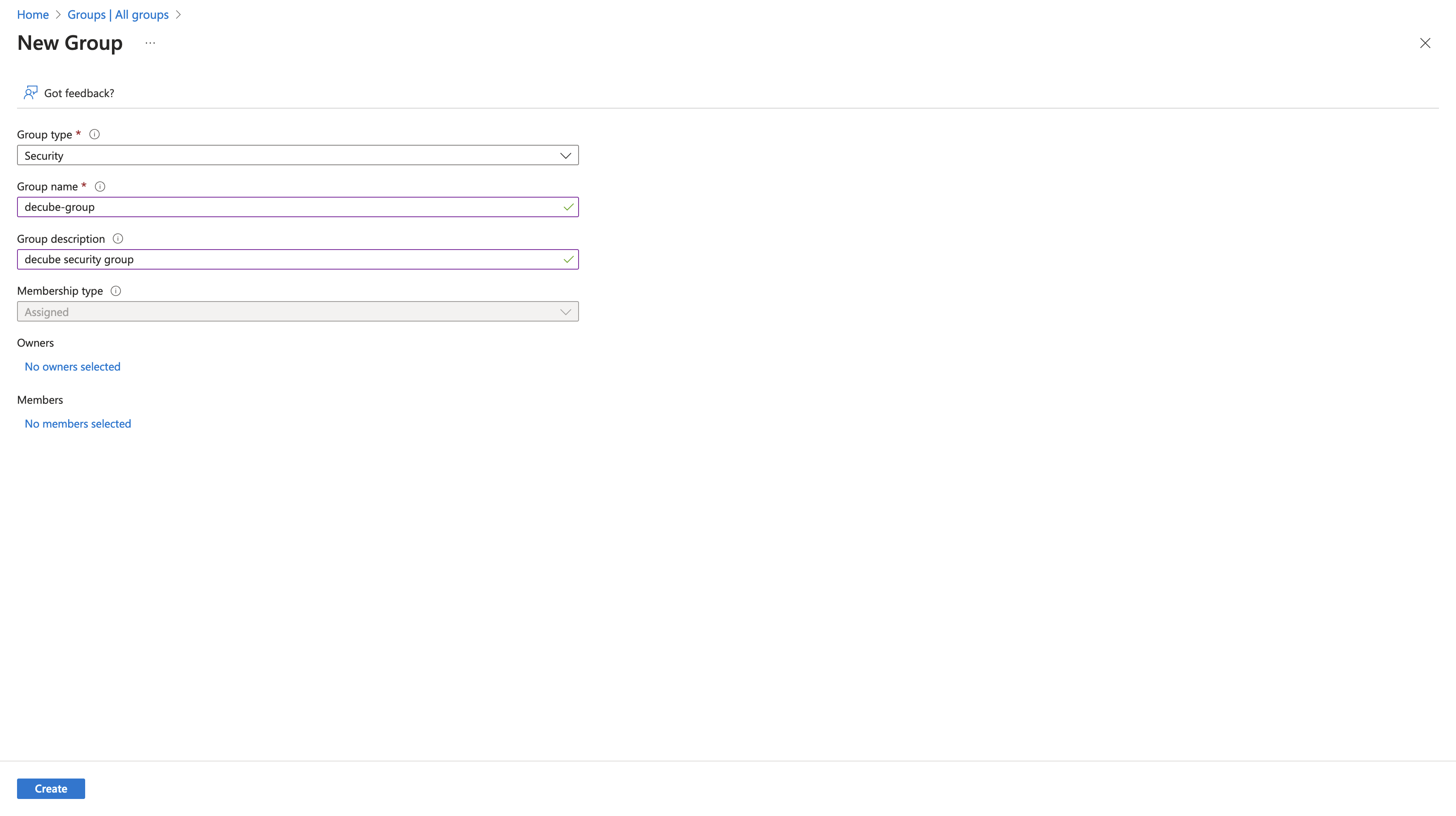

6. Go back to the Azure Active Directory main page and on the left tab again click on Groups. Click `Create New Group`.

<figure><img src="https://1779874722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTw0qpCVzfrIXqS4FEg4T%2Fuploads%2Fgit-blob-e9864953810a7a38cfb7b9160d22aa844d163f54%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

7. Ensure Group Type is `Security.`
8. Click on members and search for the previously configured Service Principal. Here it would be `decube`.

<figure><img src="https://1779874722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTw0qpCVzfrIXqS4FEg4T%2Fuploads%2Fgit-blob-22c6bb3233e3ffbec333434d81546df90b1f19aa%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

9. Click on `Select` to add the service principal into the group.
10. Click on `Create` and we are done retrieving the `Tenant ID`, `Client ID` and `Client Secret` for this integration.

### Setting up and providing permissions to Service Principal

1. On the main PowerBI workspace page, on the top right corner, click on the gear icon to Setting and below `Governance and Insight` you will find `Admin Portal`.
2. Here in the Admin Portal, find Tenant Settings and search for `Allow service principals to use Power BI APIs under Developer Settings`.

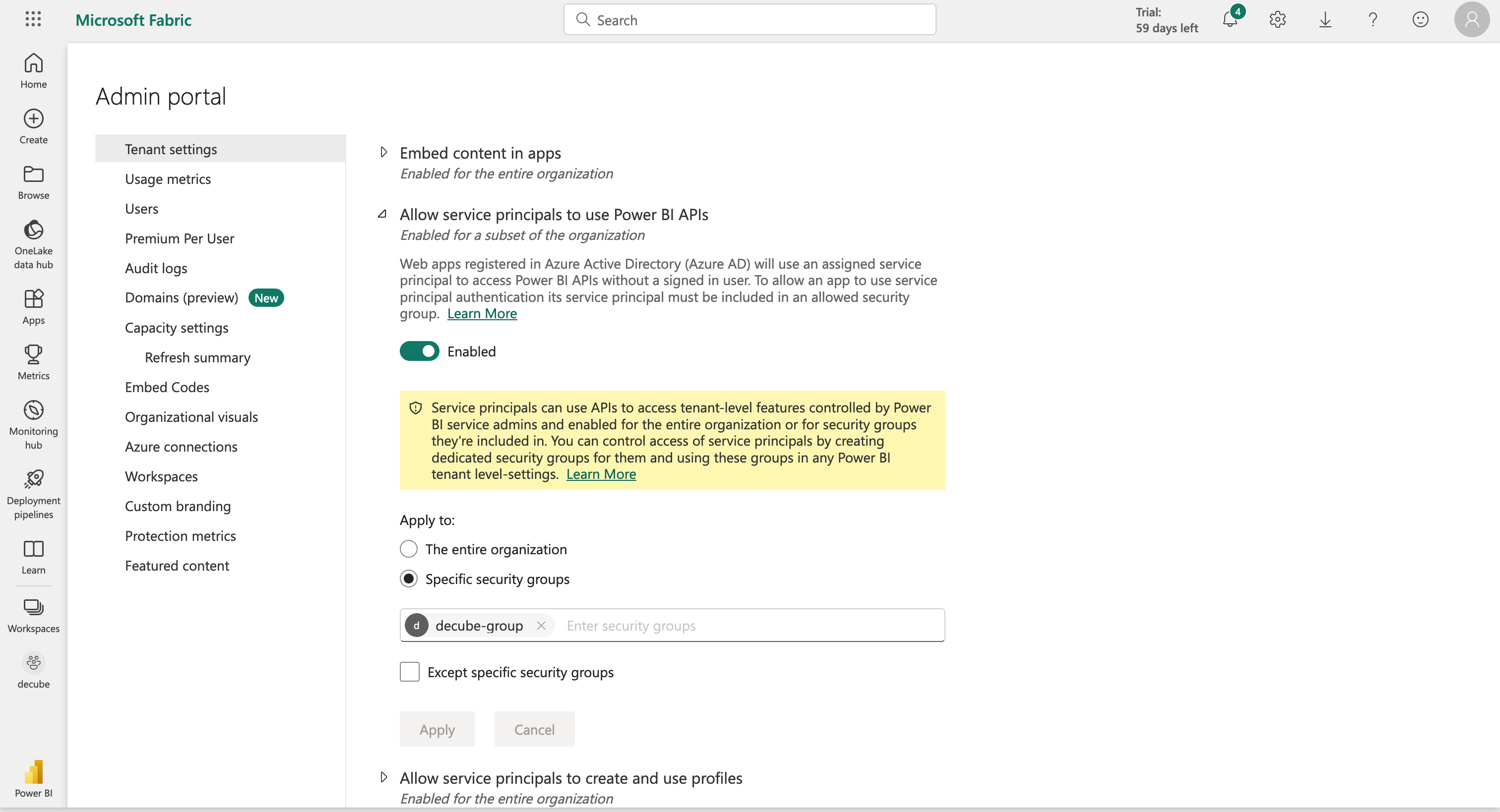

3. Enable it and either `Apply to Entire Organisation` or `Specific Security Group.` Here you can search for the one we created earlier. Example of how it should look like below.

<figure><img src="https://1779874722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTw0qpCVzfrIXqS4FEg4T%2Fuploads%2Fgit-blob-f2d1b26ace9672a01d7a5bb7ced344df89baa64d%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

4. Please enable and do this for the following settings as well under `Admin API` settings.

* `Allow service principals to use read-only admin APIs`
* `Enhance admin APIs responses with detailed metadata`
* `Enhance admin APIs responses with DAX and mashup expressions`

### Additional Configuration for lineage

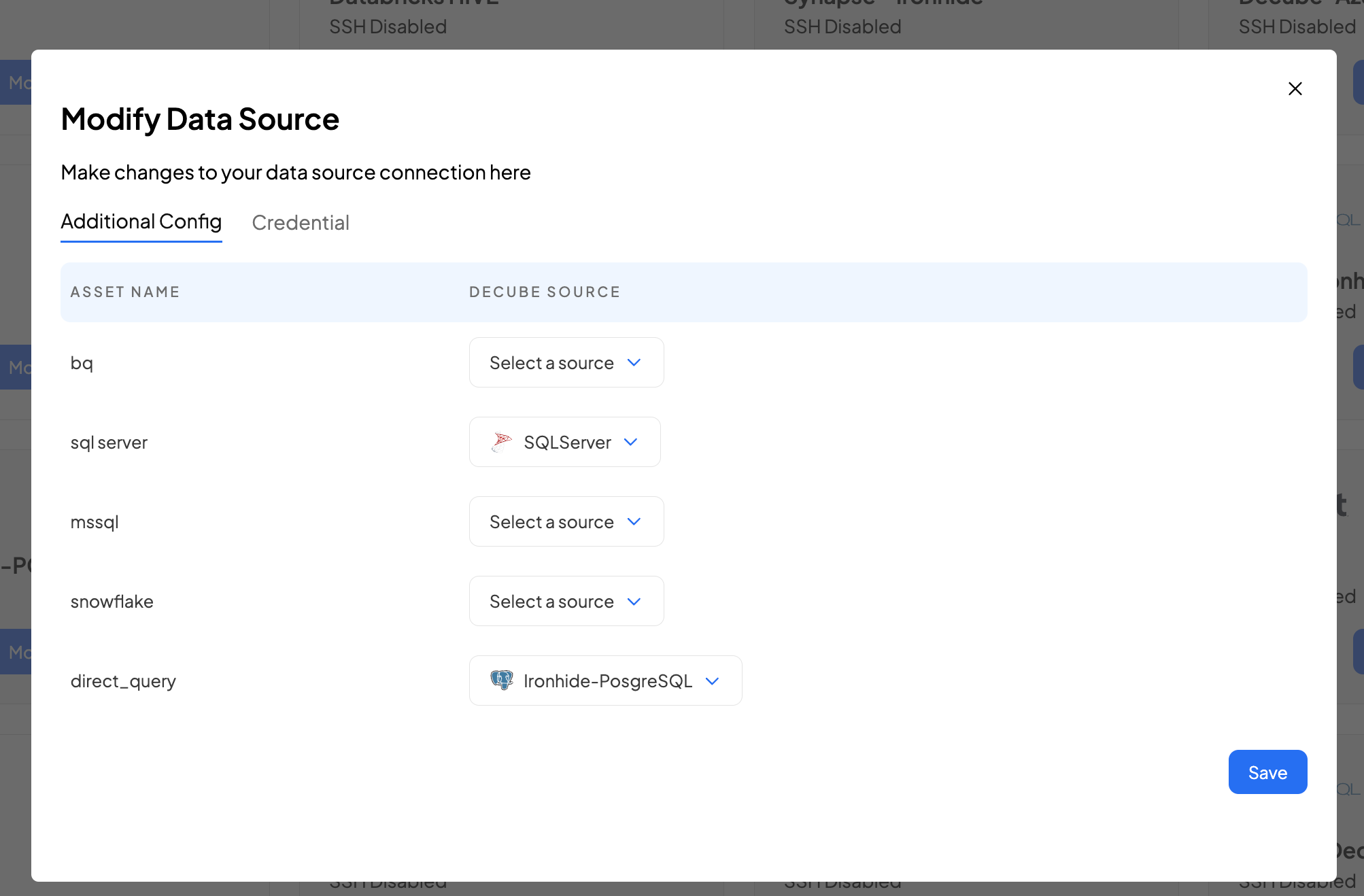

To build out the lineage, we will need to know the data sources that you've referenced within your PowerBI definitions. You can do a one-time mapping for the sources by going to the Data Sources page > Modify Data Source > Additional Config.

<figure><img src="https://1779874722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTw0qpCVzfrIXqS4FEg4T%2Fuploads%2Fgit-blob-150aac8595ac5d3093363e2d64edbe77b66b29de%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>
